LT Panel is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution board. Our LT panels are designed to work with low electricity consumption that makes them cost effective. We manufacture following type of LT Panels :-

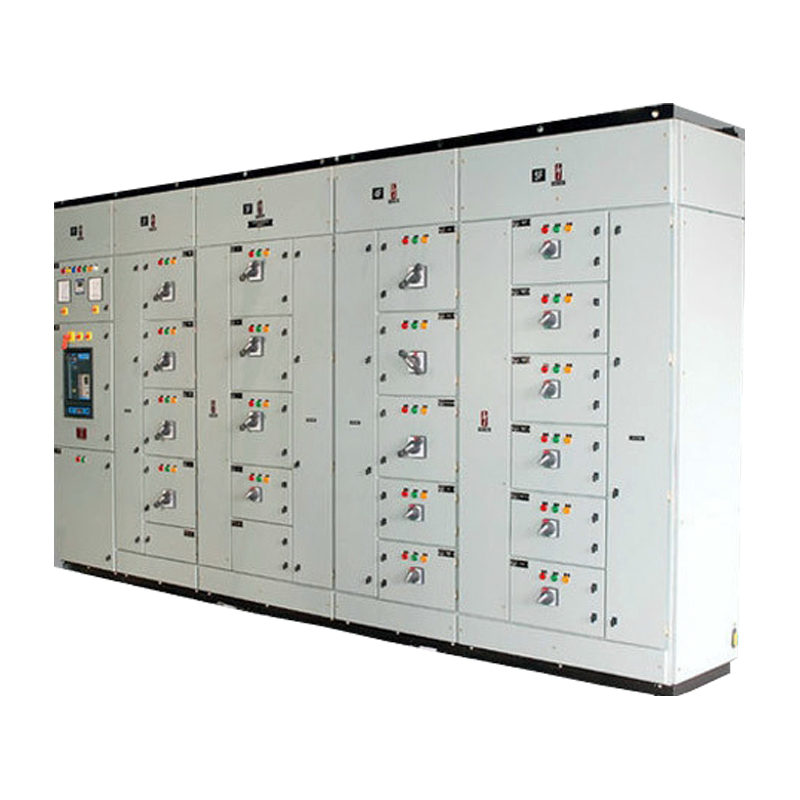

Power Control Center (PCC)
We offer PCC Panel with a current carrying capacity up to 6300 Amp. We have short circuit type test Certificate of 65 KA/1sec from CPRI. Our PCC Panel integrated with all necessary protections to ensure that it meets all safety standards prevailling in the industry. As a special feature we provide energy management system through which you can have one month record of energy data of all feeders.

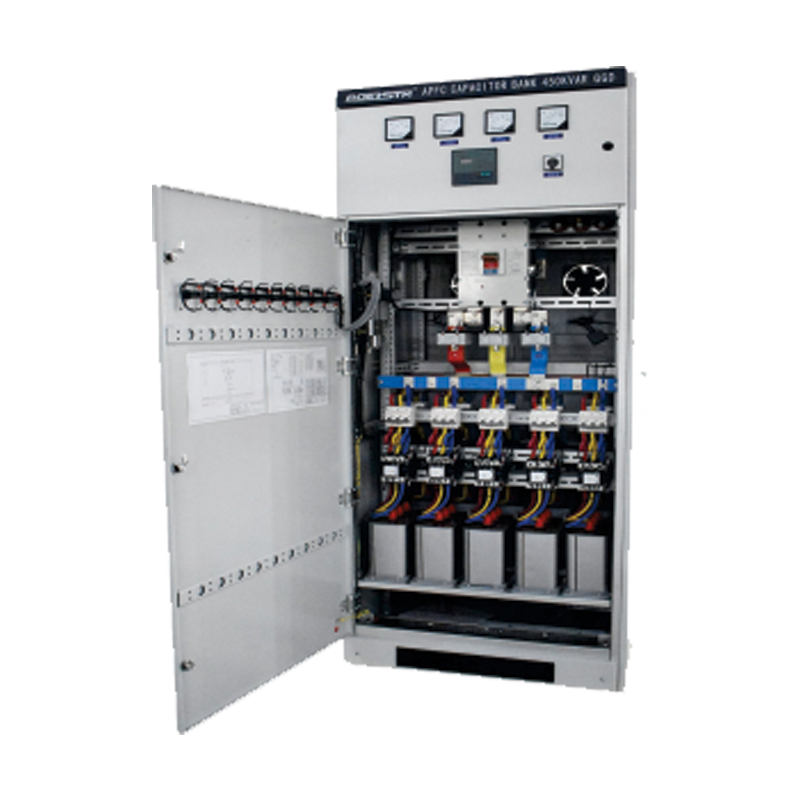

Automatic Power Factor Correction Panel (APFC)
We offer APEC Panel controlled through Thyristor cards or contactor based depends on nature of Load. To overcome harmonic effects we use detuned reactors. We supply the panels with APP/MPP Heavy duty capacitor banks as per characteristics of electrical loads. This panel is of great use to minimize loss and wastage of energy and heavy penalties by electricity boards.
CT & PT Panels
A current Transformer (CT) consitutes the principle measuring device for protection and metering purspose in any power system. The Class of accuracy for metering CT's are 0.1, 0.2, 0.55, 0.5 & 1.0 and in case of protection CT's, it is 5P20 & 10P10.
Indoor cast resin CT's for switch gears upto 33Kv
Bus Duct CT's upto 33Kv
Automatic Power Factor Correction Panel (APFC)
A Potential Transformer (PT) plays a key role in Electrically Isolating the instrument and relays from the high voltage side and for Transferring voltage from higher values to proportional lower values upto 63.5V, 100V, 110V or as per standard equipement. The Class of accuracy of metering PT are 0.1, 0.2, 0.5, 1.0 and protection is 3P.

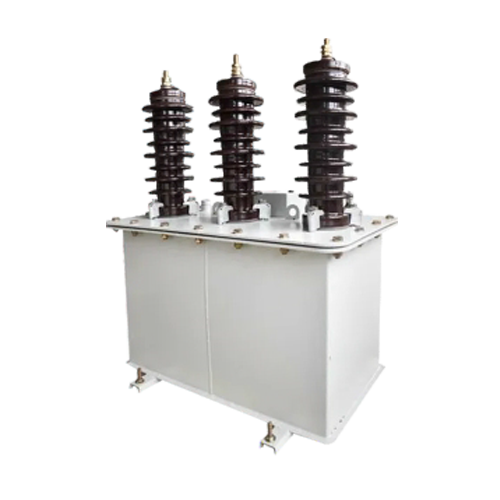

Indoor cast resin & Oil Cooled PT's

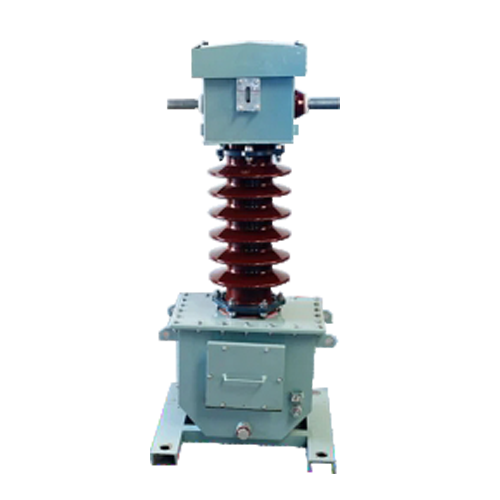

Outdoor Oil Cooled type PT's
Reliable and Versatile Power Distribution SolutionsEngineered for a broad range of applications, our LT panels can be tailored to distribution, AMF, PCC, MCC, or APFC requirements. Designed for operation at 415V AC, three-phase, 50Hz, they handle capacities up to 6300 Amps, ensuring adaptable use for diverse industries. The panels comply with international standards and are suitable for both new installations and upgrades.
Superior Safety and Durability FeaturesMaximum safety is ensured through advanced compartmentalization, overload, short circuit, and earth fault protection relays. A powder-coated, mild steel enclosure provides reliable corrosion resistance. Each unit supports dual earth bus arrangements and has enclosure thickness between 1.6mm to 2.5mm for lasting durability, even in challenging environments.
Customization and User-Friendly DesignChoose between electrolytic copper or aluminum busbars, select Siemens Grey / RAL 7032 colors, and customize dimensions, feeders, and metering facilities to match your specific needs. Fully digital or analog metering, FRLS PVC copper control wiring, and flexible installation options (wall or floor) assure operational convenience and precise monitoring.
FAQ's of LT Panels:
Q: How does the compartmentalized construction of your LT panels benefit the user?
A: Fully compartmentalized construction ensures that each section of the LT panel is isolated, enhancing operational safety by restricting the spread of electrical faults and making maintenance easier and safer for personnel.
Q: What types of mounting options are available for the LT panels?
A: Our LT panels support both floor-mounted and wall-mounted installation, allowing you to select the most suitable arrangement based on available space and your facility's operational requirements.
Q: When is it necessary to choose different IP protection classes (IP42, IP52, IP54) for LT panels?
A: IP protection class should be selected based on the intended installation environment. For dusty or damp locations, higher ratings like IP52 or IP54 are recommended, whereas IP42 may suffice for indoor, cleaner areas. This ensures the panel maintains reliable operation and longevity.
Q: Where can these LT panels be installed and what environments are they suitable for?
A: These panels are designed for both indoor and outdoor settings and can be installed in industrial, commercial, or utility facilities. Their customizable design, enclosure thickness, and corrosion-resistant finish make them suitable for various operating conditions across India and export markets.
Q: What process is followed for customizing the LT panels to site-specific requirements?
A: We work closely with clients to determine their specific needs, such as required capacity, type of feeders, dimensions, metering options, and color preferences. Panels are then engineered to conform to IS 8623/IEC 61439 standards, ensuring they meet all technical and operational expectations.
Q: How is safety ensured during power distribution using your LT panels?
A: Safety is prioritized through the inclusion of circuit breakers (MCB, MCCB, ACB, SFU) as per application, protection relays for overload, short circuit, and earth fault, as well as dual earth bus provision and FRLS PVC copper wiring. These features collectively minimize risk and enhance operational safety.
Q: What are the benefits of using powder-coated mild steel enclosures for these panels?
A: Powder-coated mild steel enclosures offer excellent corrosion resistance, helping preserve the panel's integrity over time in harsh environments. This finish also adds to the aesthetic appeal and durability, making the panels well-suited for long-term use.
