First time in India Servokon introduces a revolutionary Next Generation of Mainline Voltage Stabilizer It provides constant output voltage to your home appliances along with many special features
Features
High frequency online double conversion technology
DSP Digital signal processors control technology
Active power factor correction APFC Ensure input power factor up to 099
Output power factor 09
Wide input voltage range 110 V 300 Vac and frequency range 40 70 Hz
Auto sensing frequency
5060 Hz frequency conversion
Cold start
Builtin Isolation Transformer Optional
Intelligent fan speed control
Quick and stable charging 90 capacity restored in 4h standard model UPS
Advanced battery management ABM
Multiple functions settable via LCD output voltage EOD autostart bypass mode ECO mode and frequency conversion mode
Multiplatform communications RS232 standard USB Rs485 SNMP dry contacts optional
Optional USB RS485 card AS400 dry contacts SNMP card SMS alarms EPO function and 12 A charger 23 kVA only

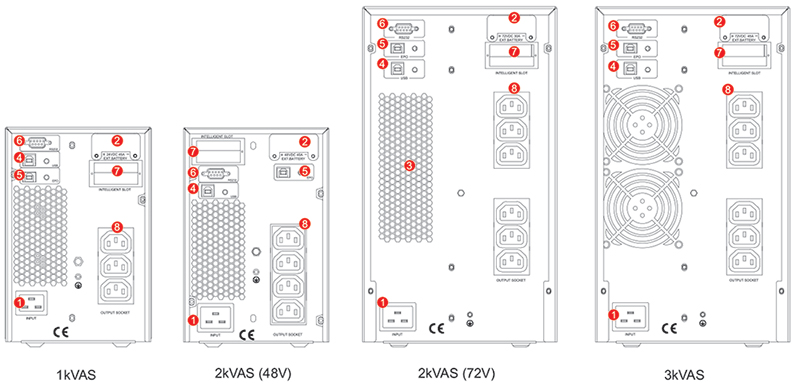

Rear Panel
AC input socket
Battery connector Optional
Fan
Output power factor 09
USB Optional
EPO Optional
RS232
Intelligent slot Optional
Output sockets
ZENITH SERIES
1 KVA 3 kVA 11 PHASE 09 PF
SPECIFICATIONS
MODEL ZENITH1101T3 ZENITH1102T3 ZENITH1103T8
Capacity 1kVA 900 W 2 kVA 1800 W
INPUT
Rated Voltage 208 220 230 240 Vac
Voltage Range 110 176 Vac Load Dependent and 100 load 176 290 V
Frequency 40 70 Hz autosensing
Power Factor 099
Bypass Voltage Range 25 15 settable
OUTPUT
Voltage 208 220 230 240 Vac settable via LCD
Voltage regulation 1
Frequency 50 60 Hz 25 Hz battery mode
Waveform Pure Sinusoidal Waveform
Power factor 09
Total harmonic distortion THDv 2 linear load 5 nonlinear load
Crest factor 31
Overload 110 for 10 Mins 125 for 1 min 125 150 for 30 sec
BATTERIES
DC voltage 36 V 96 V
Inbuilt battery 3 Nos X 7 Ah 9 Ah 8 Nos x 7 Ah 9 Ah
Charging current standard 1A 5A
Recharge time Standard model 90 capacity restored in 3 hours Long Time Model depend on the capacity of battery
SYSTEM
Efficiency 90 96 Green mode
Transfer time Mains mode to battery mode 0 ms
Inverter mode to bypass mode 4 ms typical
Protections Shortcircuit overload overtemperature battery discharge protection and fan testing protection
Communications RS232 standard USB RS485 dry contacts SNMP optional
Display LCD LED
Standards EN 620401 EN 620402 EN 6100032 EN 6100033 IEC 6100042 IEC 6100043 IEC 6100044 IEC 6100045 IEC 6100046 IEC 6100048 IEC 61000411 IEC 6100022 IEC 620402 IEC 620401 IEC 620403
OTHERS
Operating temperature
00C 400C
Storage temperature
25 c 55 c without batteries
Relative Humidity 0 95 noncondensing
Altitude 1000 m derating 1 for each additional 100 m
IP rating IP 20
Noise level at 1m 50 dB
Dimensions WxDxH mm 144 x 336 x 216 191 x 419 x 335
Net weight kg 6 kg 11 kg
Gross weight kg 7 kg 125 kg
Advanced True Online Double Conversion TechnologyOur Transformerless UPS features a true online double conversion design, guaranteeing uninterrupted power with zero milliseconds transfer time. This architecture maintains a continuous pure sine wave output, crucial for sensitive electronics and IT infrastructure, thereby preventing downtime and protecting valuable data. With an input voltage range of 110V to 300V AC, it adapts seamlessly to varying power conditions.
Flexible and Expandable Battery OptionsChoose between maintenance-free sealed lead acid or lithium-ion batteries to suit your backup needs. The system provides a default backup of 10-30 minutes, with options for expansion depending on application requirements. This flexibility makes the UPS ideal for critical systems where runtime extension may be needed during power interruptions.
Comprehensive Protection and ConnectivityEquipped with overload, short circuit, over-temperature, and surge protections, this UPS safely secures connected equipment from electrical anomalies. Communication interfaces like USB, RS232, and optional SNMP allow for remote monitoring and management, catering to the needs of modern IT environments. The intuitive LCD digital display provides real-time system information for hassle-free operation.
FAQ's of Online Transformerless Ups:
Q: How does the online transformerless UPS ensure zero transfer time for power backup?
A: The UPS utilizes true online double conversion technology, meaning it continuously powers your equipment through its inverter. This design eliminates transfer time during outages, as power supply remains uninterrupted, ensuring your critical devices are always protected.
Q: What types of batteries are compatible with this UPS and can I extend backup time?
A: This UPS supports both maintenance-free sealed lead acid and lithium-ion batteries. The standard battery backup time is 10-30 minutes, which can be extended by adding extra battery modules according to your power backup requirements.
Q: Where is this UPS system suitable for deployment?
A: The system is perfect for sensitive electronic environments such as computer systems, data centers, servers, and networking equipment. Its compact size and low noise make it well-suited for office spaces, server rooms, and other professional settings.
Q: What process is involved in monitoring and managing the UPS remotely?
A: Remote management is facilitated via built-in communication ports like USB and RS232, with an optional SNMP interface. By connecting to a computer or network, users can monitor performance, receive alerts, and control UPS functions, ensuring proactive maintenance and quick trouble resolution.
Q: What benefits does the pure sine wave output provide for connected equipment?
A: A pure sine wave output fully replicates the quality of standard mains power, ensuring safe and efficient operation for sensitive electronics. This prevents malfunctions, reduces wear, and prolongs the lifespan of devices such as servers and networking equipment.
Q: What kind of protection features are integrated into this UPS?
A: The UPS is equipped with comprehensive protection mechanisms, including overload, short circuit, over temperature, and input surge protection. These features defend both your equipment and the UPS itself against common electrical hazards, minimizing risk and damage.
