Features
Unity Power Factor KVA KW
High frequency online double conversion technology
DSP Digital signal processors control technology
Active power factor correction APFC Ensure input power factor up to 099
High Efficiency 95 Up to 98 in ECO mode
Advanced Digital Parallel Technology
Wide input voltage range 110 V 290 Vac and frequency range 40 70 Hz
Auto sensing frequency 5060 Hz
Dualinput design supporting independent bypass
Flexible battery configuration settable 1620 Nos batteries
High charging current available Max 12 A
Charging voltage and current configured by demands
Equipped with selfaging function
Fan speed varies intelligently with temperature reducing noise and extending its service life
Equipped with selfaging function Multi Function LCD LED Key operation Friendly Human Machine Interface
Advanced multiplatform communications RS232 USB RS485 SNMP and dry contacts communication interfaces
Effective software and hardware protection function robust selfdiagnostic function and abundant event log for check
Builtin Isolation Transformer Optional
Cold start

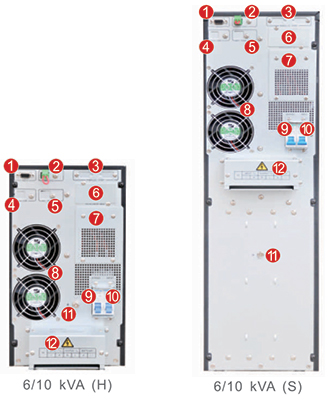

Rear Panel
RS232
EPO
Parallel Port optional
USB optional
Temperature Detection optional
Intelligent Slot
Breaker or outlets ect
Fans
Bypass Breaker
Input Breaker
GND
Terminals and Cover
ZENITH SERIES
6 Kva 10 kva 11 phase 10 pf
SPECIFICATIONS
MODEL ZENITH1106T20 ZENITH1110T20
Capacity 6 kVA 6 kW 10 kVA 10 kW
INPUT
Rated Voltage 208 220 230 240 Vac
Voltage Range 110 176 Vac Load Dependent and 100 load 176 290 V
Frequency 40 70 Hz autosensing
Power Factor 099
Bypass Voltage Range 40 15 settable
OUTPUT
Voltage 208 220 230 240 Vac settable via LCD
Voltage regulation 1
Frequency 50 60 Hz 25 Hz battery mode
Waveform Pure Sinusoidal Waveform
Power factor 09
Total harmonic distortion THDv 1 linear load 4 nonlinear load
Crest factor 31
Overload 110 for 10 Mins 125 for 1 min 125 150 for 30 sec
BATTERIES
DC voltage 192 Vdc 192 240 Vdc settable
Inbuilt battery 16 Nos 16 20 settable
Charging current standard 5A default 12A optional
Recharge time Standard model 90 capacity restored in 8 hours Long Time Model depend on the capacity of battery
SYSTEM
Efficiency 94 at 100 load max 95 at 60 load 98 in ECO mode
Transfer time Mains mode to battery mode 0 ms
Inverter mode to bypass mode 4 ms typical
Protections Shortcircuit overload overtemperature battery discharge protection and fan testing protection
Communications RS232 standard USB RS485 dry contacts SNMP optional
Display LCD LED
Standards EN 620401 EN 620402 EN 6100032 EN 6100033 IEC 6100042 IEC 6100043 IEC 6100044 IEC 6100045 IEC 6100046 IEC 6100048 IEC 61000411 IEC 6100022 IEC 620402 IEC 620401 IEC 620403
OTHERS
Operating temperature 00C 450C
Storage temperature
250C 550C without batteries
Relative Humidity 0 95 noncondensing
Altitude 1500 m derating 1 for each additional 100 m
IP rating IP 20
Noise level at 1m 55 dB 58 dB
Dimensions WxDxH mm 191 x 465 x 350 191 x 495 x 350
Net weight kg 145 kg 165 kg
Gross weight kg 16 kg 18 kg
This UPS is engineered for demanding environments like data centers and IT infrastructure. Offering a wide input range and pure sine wave output, it ensures uninterrupted, high-quality power for sensitive equipment. Its intelligent features and multi-layered safeguards deliver reliability where failure is not an option.
Equipped with an LCD display and multiple communication interfaces (RS232/USB/SNMP), this UPS enables real-time monitoring and remote management. Audible alarms keep users informed of important operational events, enhancing system reliability and user confidence.
Operating at efficiencies up to 96% and with fan-based intelligent cooling, this UPS minimizes energy loss while maintaining safe operation. Its compact design, multiple power ratings, and maintenance-free batteries make it versatile for a range of installation requirements.
